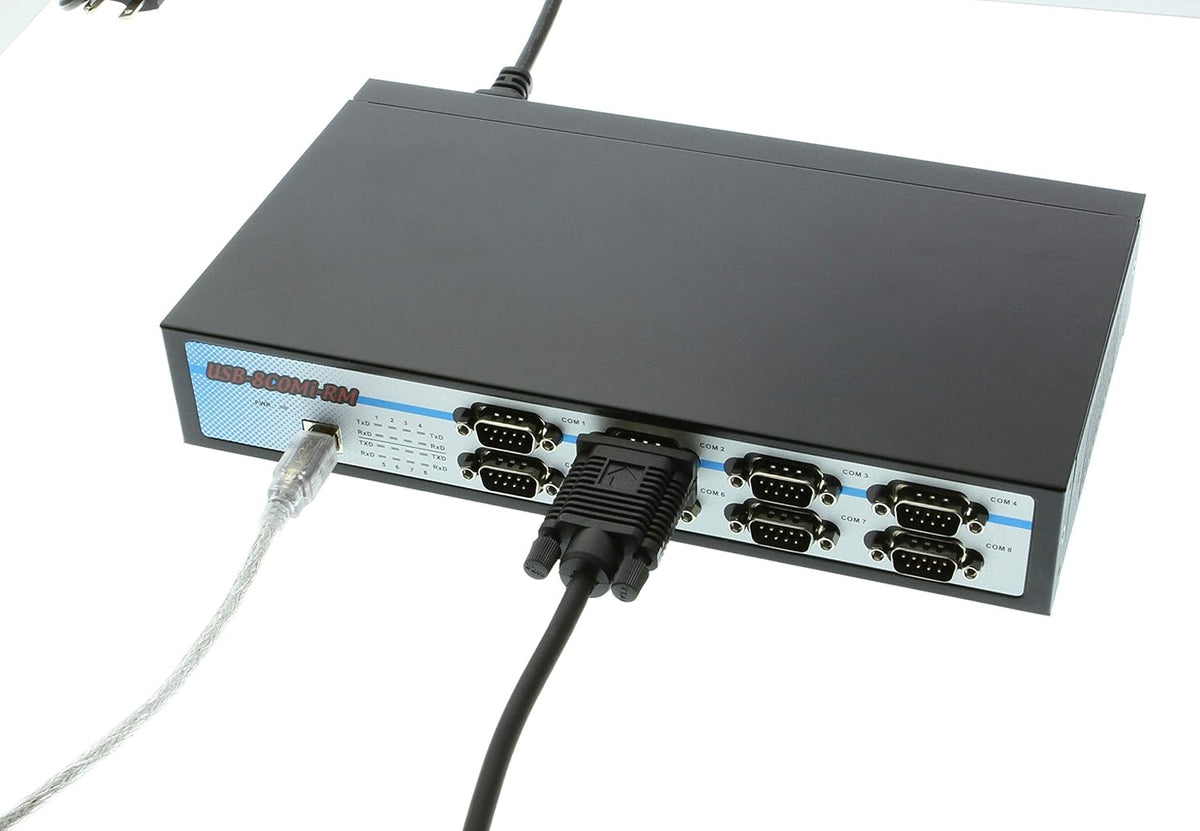

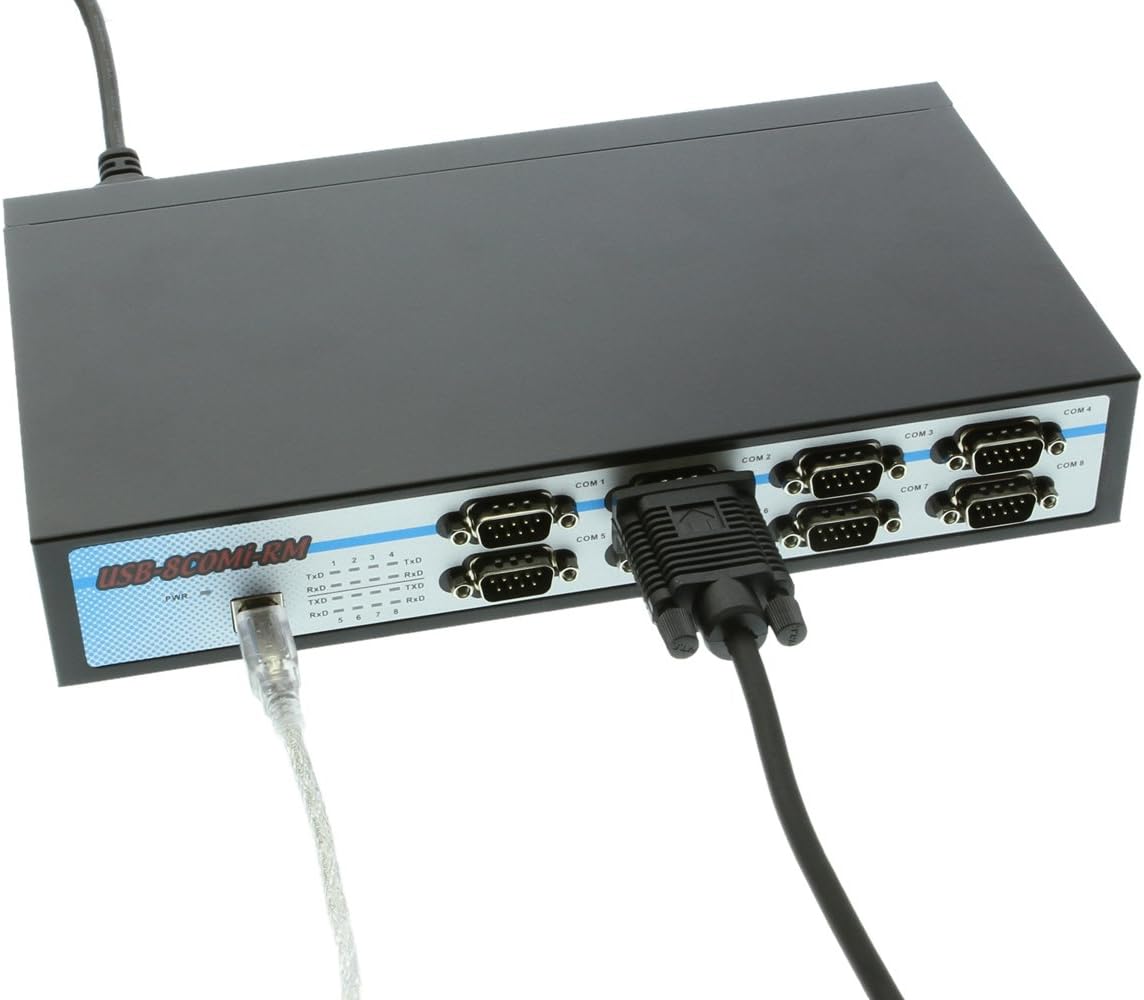

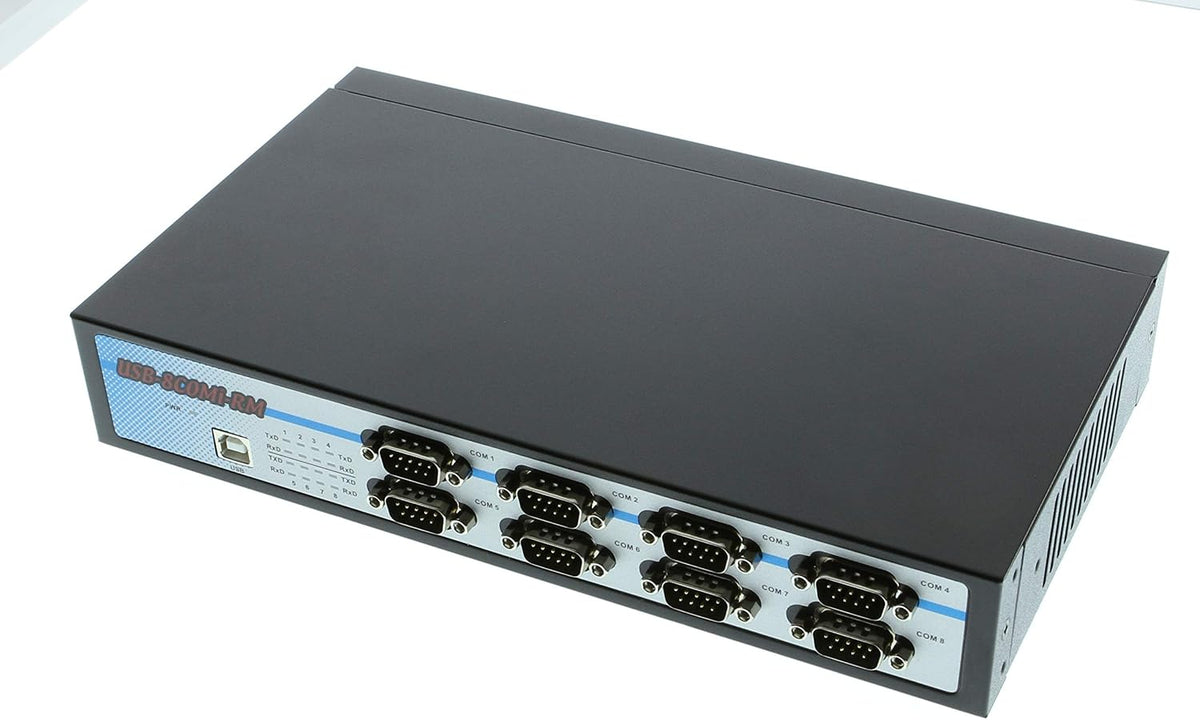

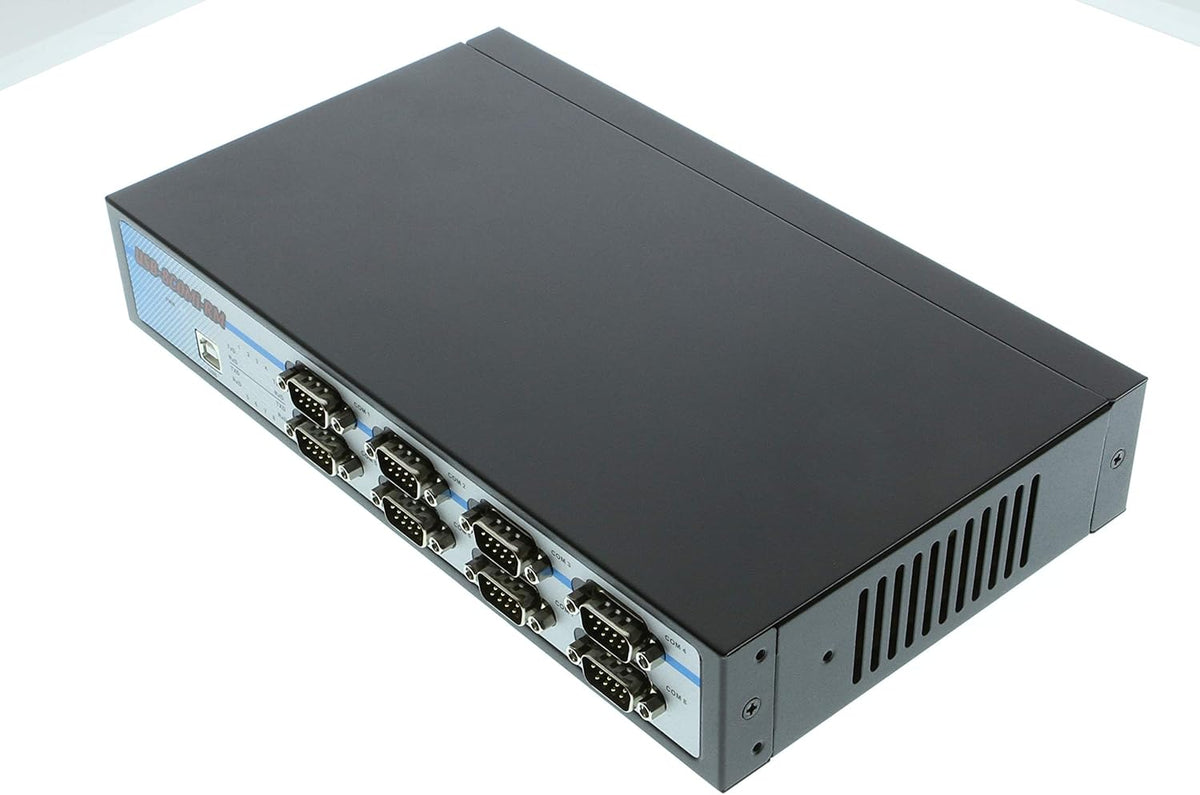

USB to Octal RS-232/422/485 Adapter Metal Case with DIN-Rail D1059

The 8 port serial adapter is designed with 8 external 4-pin dip switches to independently set RS-232, RS-422or RS-485 mode conveniently, without the need to open the metal chassis.DIN rail bracket included for industrial application environments and can be also mounted to a 19 rack, the rack mount kits are included with the adapter.

Termination and biasing option are available for data transmission lines. The adapter provides instant connectivity to RS-232, RS-422, RS-485 communication devices for POS, factory automation equipment, multi-drop data collection devices, bar code readers, etc...Supports harsh environments.

Features:

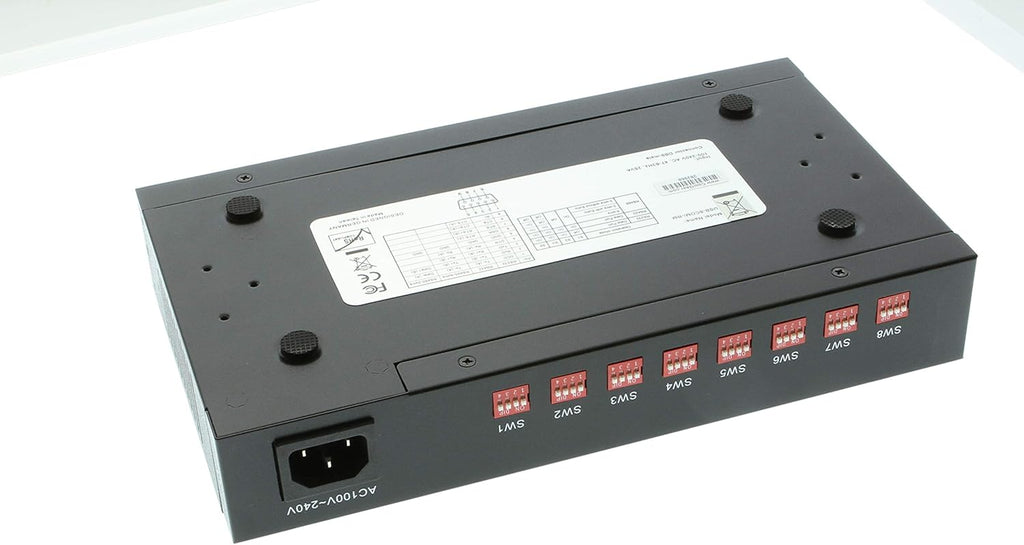

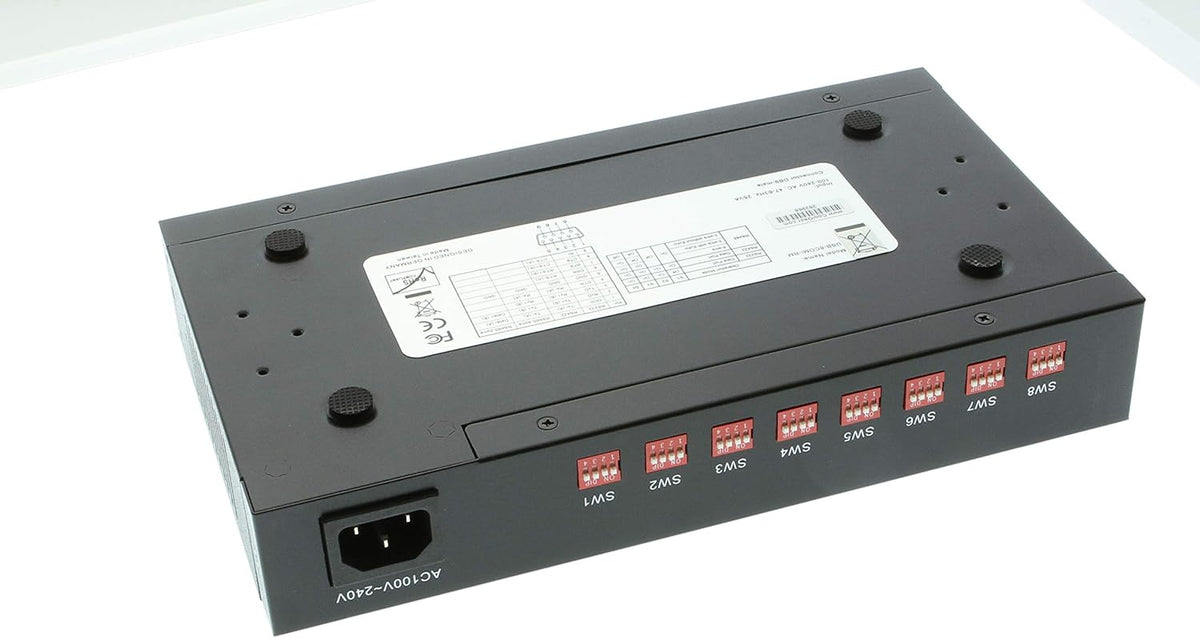

• Operation modes-eight external DIP switches for easy RS-232, RS-422, RS-485 mode settings
• Installed as standard Windows COM port

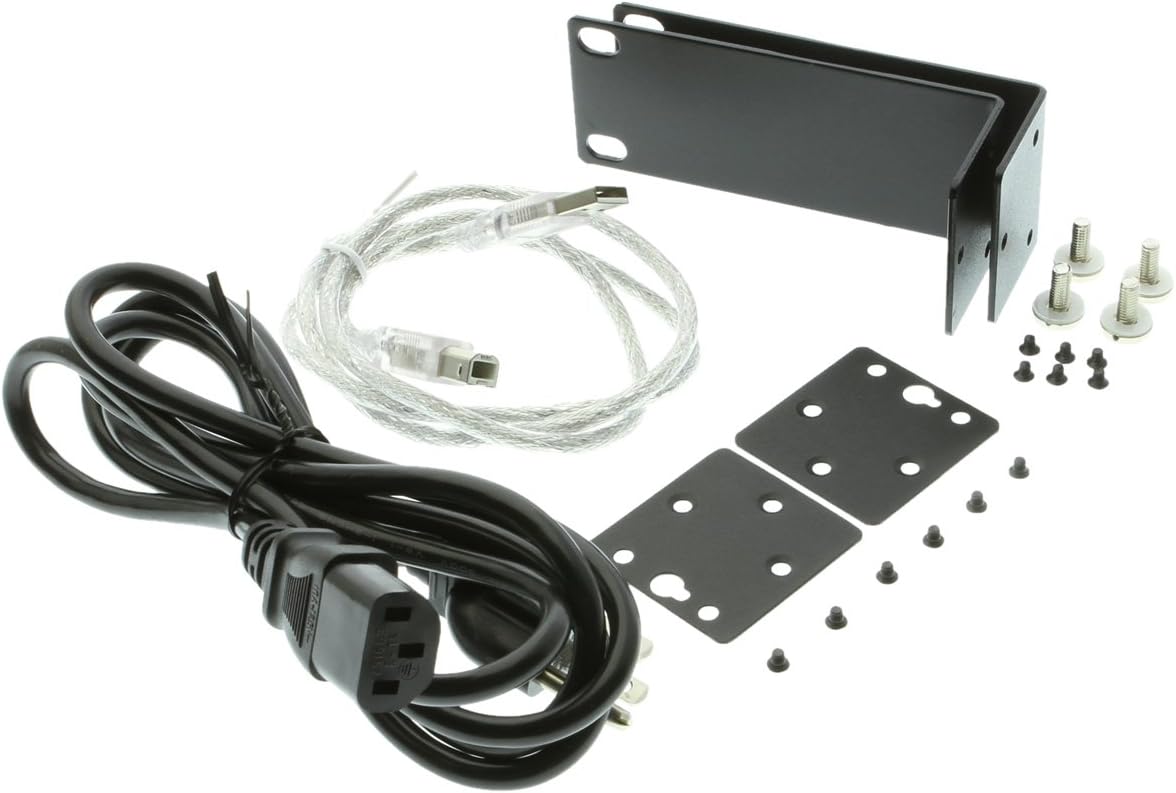

• SECC metal chassis with both DIN rail brackets and rack-mounting kits for flexible mounting
• Full RS-232 modem control signals and hardware/software flow control
• RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
• RS-422 data signals: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-
• RS-485 4-wire data signals: TxD-, TxD+, RxD+, RxD-
• RS-485 2-wire data signals: Data-, Data+
• Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
• Baud rate up to 921.6K bps
• Non-standard baudrates supported
• LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
• Serial port protected with surge protection of 10KV
• Built-in switching power supply of 100V~240V
• Easy plug and play installation
• COM port number assigned can be changed to any COM port number required
• Works with USB 1.1 & 2.0 host port
• Windows XP, Vista, Windows 7, Windows 8, and Windows 10
• Linux and Mac OS 10.X
